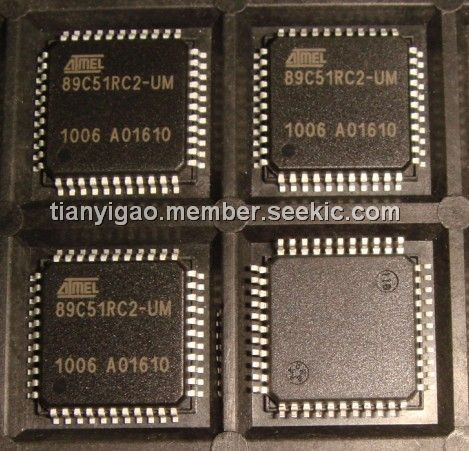

Product Summary

The AT89C51RC2-UM is a high-performance Flash version of the 80C51 8-bit microcontrollers. It contains a 16K or 32K Bytes Flash memory block for program and data. The Flash memory can be programmed either in parallel mode or in serial mode with the ISP capability or with software. The programming voltage is internally generated from the standard VCC pin. The AT89C51RC2-UM retains all features of the 80C52 with 256 Bytes of internal RAM, a 9-source 4-level interrupt controller and three timer/counters. In addition, the AT89C51RC2-UM has a Programmable Counter Array, an XRAM of 1024 Bytes, a Hardware Watchdog Timer, a Keyboard Interface, an SPI Interface, a more versatile serial channel that facilitates multiprocessor communication (EUART) and a speed improvement mechanism (X2 mode).

Parametrics

AT89C51RC2-UM absolute maximum ratings: (1)C = commercial: 0℃ to 70℃; (2)I = industrial: -40℃ to 85℃; (3)Storage Temperature: -65℃ to + 150℃; (4)Voltage on VCC to VSS (standard voltage): -0.5V to + 6.5V; (5)Voltage on VCC to VSS (low voltage): -0.5V to + 4.5V; (6)Voltage on Any Pin to VSS: -0.5V to VCC + 0.5V; (7)Power Dissipation: 1 W.

Features

AT89C51RC2-UM features: (1)80C52 Compatible; (2)8051 Pin and Instruction Compatible; (3)Four 8-bit I/O Ports; (4)Three 16-bit Timer/Counters; (5)256 Bytes Scratch Pad RAM; (6)9 Interrupt Sources with 4 Priority Levels; (7)Dual Data Pointer; (8)Variable Length MOVX for Slow RAM/Peripherals; (9)ISP (In-system Programming) Using Standard VCC Power Supply; (10)Boot ROM Contains Low Level Flash Programming Routines and a Default Serial Loader; (11)High-speed Architecture; (12)16K/32K Bytes On-chip Flash Program/Data Memory; (13)Byte and Page (128 Bytes) Erase and Write; (14)100K Write Cycles; (15)On-chip 1024 Bytes Expanded RAM (XRAM); (16)Software Selectable Size (0, 256, 512, 768, 1024 Bytes); (17)256 Bytes Selected at Reset for TS87C51RB2/RC2 Compatibility; (18)Keyboard Interrupt Interface on Port P1; (19)SPI Interface (Master/Slave Mode); (20)8-bit Clock Prescaler; (21)Improved X2 Mode with Independent Selection for CPU and Each Peripheral; (22)Asynchronous Port Reset; (23)Full Duplex Enhanced UART; (24)Dedicated Baud Rate Generator for UART; (25)Low EMI (Inhibit ALE); (26)Hardware Watchdog Timer (One-time Enabled with Reset-out); (27)Temperature Ranges: Commercial (0 to +70℃) and Industrial (-40℃ to +85℃); (28)Packages: PDIL40, PLCC44, VQFP44.

Diagrams

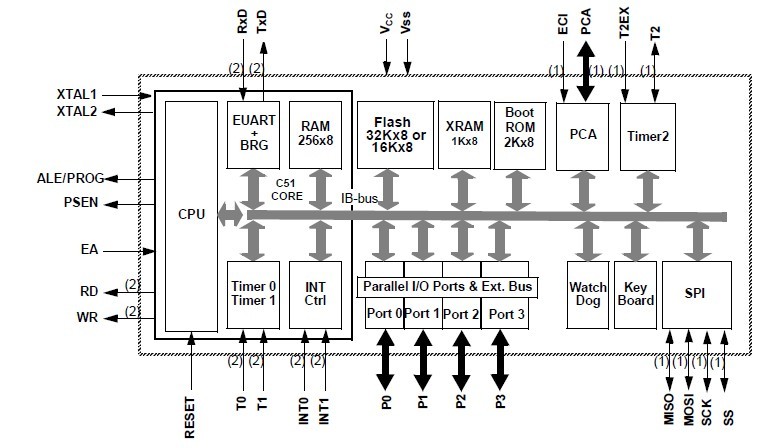

AT89C51RC2-UM block diagram
