Product Summary
The HD6417709AF133B is a 32-Bit RISC microcomputer that integrates a Renesas Technology-original RISC-type SuperH architecture CPU as its core that has an on-chip multiplier, cache memory, and a memory management unit (MMU) as well as peripheral functions required for system configuration such as a timer, a realtime clock, an interrupt controller, and a serial communication interface. The HD6417709AF133B includes data protection, virtual memory, and other functions provided by incorporating an MMU into a SuperH Series microprocessor (SH-1 or SH-2).
Parametrics
HD6417709AF133B absolute maximum ratings: (1)Power supply voltage (I/O) VccQ: –0.3 to 4.2 V; (2)Input voltage (except port L) Vin: –0.3 to VccQ + 0.3 V; (3)Input voltage (port L) Vin: –0.3 to AVcc + 0.3 V; (4)Analog power-supply voltage AVcc: –0.3 to 4.6 V; (5)Analog input voltage VAN: –0.3 to AVcc + 0.3 V; (6)Operating temperature Topr: –20 to 75 ℃; (7)Storage temperature Tstr: –55 to 125 ℃.
Features
HD6417709AF133B features: (1)Original Renesas Technology SuperH architecture; (2)Object code level with SH-1, SH-2, and SH-3 Series; (3)32-bit internal data bus; (4)Instruction execution time: one instruction/cycle for basic instructions; (5)Logical address space: 4 Gbytes; (6)Space identifier ASID: 8 bits, 256 logical address space; (7)Five-stage pipeline.

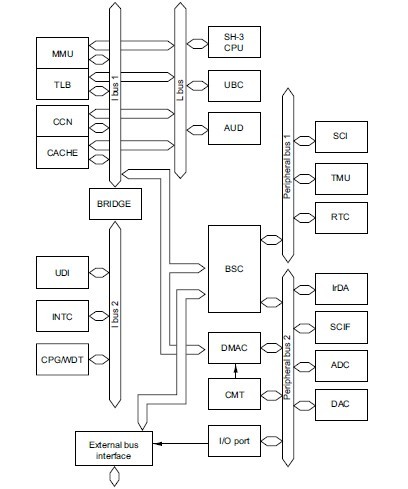

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 HD6417709AF133B |
|
IC SUPERH MCU ROMLESS 208-QFP |
Data Sheet |
Negotiable |
|
||||||
 |
HD6417709AF133BV |
|
IC SUPERH MPU ROMLESS 208QFP |
Data Sheet |
|
|
||||||
