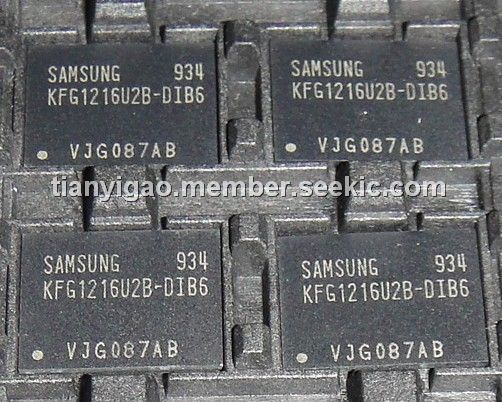

KFG1216U2B-DIB6

Product Summary

The KFG1216U2B-DIB6 is an advanced generation, high-performance NAND-based Flash memory. It integrates on-chip a single-level-cell (SLC) NAND Flash Array memory with two independent data buffers, boot RAM buffer, a page buffer for the Flash array, and a one-time-programmable block. The combination of these memory areas enable high-speed pipelining of reads from host, BufferRAM, Page Buffer, and NAND Flash Array. Clock speeds up to 66MHz with a x16 wide I/O yields a 108MByte/second bandwidth. The KFG1216U2B-DIB6 also includes a Boot RAM and boot loader. This enables the device to efficiently load boot code at device startup from the NAND Array without the need for off-chip boot device. One block of the NAND Array is set aside as an OTP memory area, and 1st Block (Block 0) can be used as OTP area. This area, available to the user, can be configured and locked with secured user information. On-chip controller interfaces enable the device to operate in systems without KFG1216U2B-DIB6 Host controllers.

Parametrics

KFG1216U2B-DIB6 absolute maximum ratings: (1)Voltage on any pin relative to VSS, Vcc Vcc (for 3.3V): -0.5 to + 4.6V; (2)All Pins VIN (for 3.3V): -0.5 to + 4.6V; (3)Temperature Under Bias Industrial Tbias: -40 to +125℃; (4)Storage Temperature Tstg: -65 to +150 ℃; (5)Short Circuit Output Current IOS: 5 mA; (6)Recommended Operating Temperature, TA (Extended Temp.): -30 to +85℃; (7)TA (Industrial Temp.): -40 to +85℃.

Features

KFG1216U2B-DIB6 features: (1)Host Interface Type; (2)Programmable Burst Read Latency; (3)Multiple Sector Read/Write; (4)Multiple Reset Modes; (5)Multi Block Erase; (6)Low Power Dissipation; (7)Reliable CMOS Floating-Gate Technology; (8)Voltage detector generating internal reset signal from Vcc; (9)Hardware reset input (RP); (10)Data Protection Modes; (11)User-controlled One Time Programmable(OTP) area; (12)Internal 2bit EDC / 1bit ECC; (13)Internal Bootloader supports Booting Solution in system; (14)Handshaking Feature; (15)Detailed chip information.

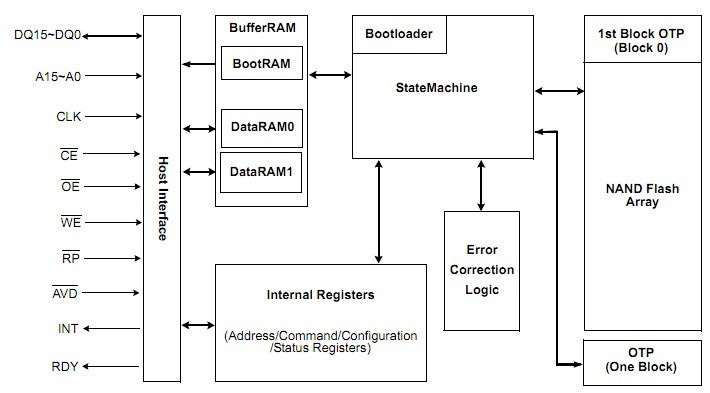

Diagrams
