Product Summary

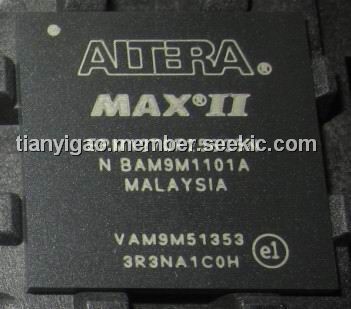

The EPM1270F256C5N is an instant-on, non-volatile CPLD. It is based on a 0.18-μm, 6-layermetal-flash process, with densities from 240 to 2,210 logic elements (LEs) (128 to 2,210 equivalent macrocells) and non-volatile storage of 8 Kbits. The EPM1270F256C5N offers high I/O counts, fast performance, and reliable fitting versus other CPLD architectures. Featuring MultiVolt core, a user flash memory (UFM) block, and enhanced in-system programmability (ISP), the EPM1270F256C5N is designed to reduce cost and power while providing programmable solutions for applications such as bus bridging, I/O expansion, power-on reset (POR) and sequencing control, and device configuration control.
Parametrics
EPM1270F256C5N absolute maximum ratings: (1)Internal supply voltage: –0.5 to 4.6 V With respect to ground; (2)I/O supply voltage: –0.5 to 4.6 V; (3)DC input voltage: –0.5 to 4.6 V; (4)DC output current, per pin: –25 to 25 mA; (5)Storage temperature No bias: –65 to 150 ℃; (6)Ambient temperature Under bias: –65 to 135 ℃; (7)Junction temperature TQFP and BGA packages under bias: 135 ℃.
Features
EPM1270F256C5N features: (1)Low-cost, low-power CPLD; (2)Instant-on, non-volatile architecture; (3)Standby current as low as 29 μA; (4)Provides fast propagation delay and clock-to-output times; (5)Provides four global clocks with two clocks available per logic array block (LAB); (6)UFM block up to 8 Kbits for non-volatile storage; (7)MultiVolt core enabling external supply voltages to the device of either 3.3 V/2.5 V or 1.8 V; (8)MultiVolt I/O interface supporting 3.3-V, 2.5-V, 1.8-V, and 1.5-V logic levels; (9)Bus-friendly architecture including programmable slew rate, drive strength, bushold, and programmable pull-up resistors; (10)Schmitt triggers enabling noise tolerant inputs (programmable per pin).
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 EPM1270F256C5N |
|
IC MAX II CPLD 1270 LE 256-FBGA |
Data Sheet |
|
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
|
EPM1270F256C3 |
|
IC MAX II CPLD 1270 LE 256-FBGA |
Data Sheet |
|
|
||||||
|
EPM1270F256C3N |
|
IC MAX II CPLD 1270 LE 256-FBGA |
Data Sheet |
|
|
||||||
|
EPM1270F256C4 |
|
IC MAX II CPLD 1270 LE 256-FBGA |
Data Sheet |
|
|
||||||
|
EPM1270F256C4N |
|
IC MAX II CPLD 1270 LE 256-FBGA |
Data Sheet |
|
|
||||||
|
EPM1270F256C5 |
|
IC MAX II CPLD 1270 LE 256-FBGA |
Data Sheet |
|
|
||||||
|
EPM1270F256C5N |
|
IC MAX II CPLD 1270 LE 256-FBGA |
Data Sheet |
|
|
||||||
