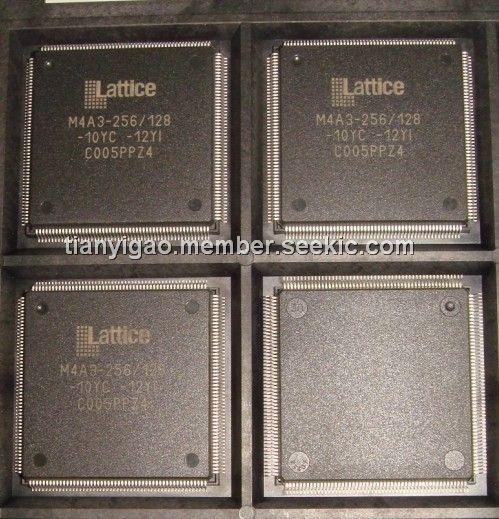

Product Summary
The M4A3-256 from Lattice offers an exceptionally flexible architecture and delivers a superior Complex Programmable Logic Device (CPLD) solution of easy-to-use silicon products and software tools. The overall benefits for users are a guaranteed and predictable CPLD solution, faster time-to-arket, greater flexibility and lower cost. The M4A3-256 offers densities ranging from 32 to 512 macrocells with 100% utilization and 100% pin-out retention. The M4A3-256 offers 3.3-V (M4A3-xxx) operation.
Parametrics
M4A3-256 absolute maximum ratings: (1)Storage Temperature: -65℃ to +150℃; (2)Ambient Temperature with Power Applied: -55℃ to +100℃; (3)Device Junction Temperature: +130℃; (4)Supply Voltage with Respect to Ground: -0.5 V to +7.0 V; (5)DC Input Voltage: -0.5 V to VCC + 0.5 V; (6)Static Discharge Voltage: 2000 V; (7)Latchup Current (TA = -40℃ to +85℃): 200 mA.
Features
M4A3-256 features: (1)High-performance, E2CMOS 3.3-V & 5-V CPLD families; (2)32 to 512 macrocells; 32 to 768 registers; (3)44 to 388 pins in PLCC, PQFP, TQFP, BGA, fpBGA and caBGA packages; (4)High speed; (5)5.0ns tPD Commercial and 7.5ns tPD Industrial; (6)182MHz fCNT; (7)3.3-V & 5-V JEDEC-compliant operations; (8)JTAG (IEEE 1149.1) compliant for boundary scan testing; (9)3.3-V & 5-V JTAG in-system programming; (10)PCI compliant (-5/-55/-6/-65/-7/-10/-12 speed grades); (11)Safe for mixed supply voltage system designs; (12)Programmable pull-up or Bus-FriendlyTM inputs and I/Os; (13)Hot-socketing; (14)Programmable security bit; (15)Individual output slew rate control.

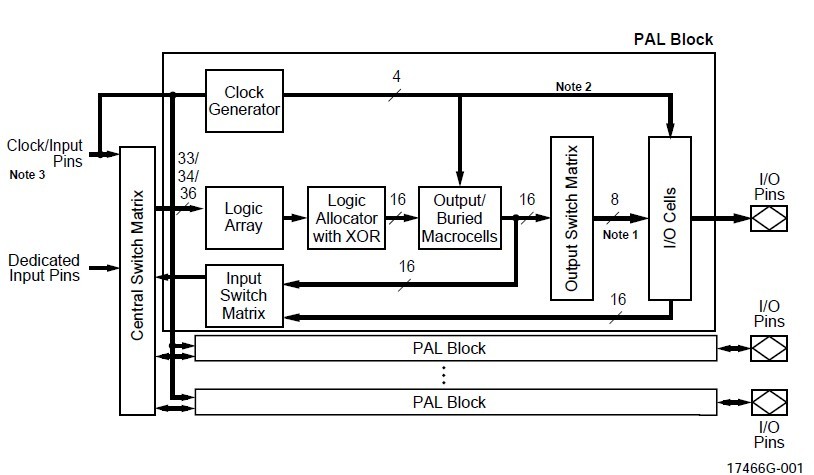

Diagrams
