Product Summary
The XC2VP30-5FGG676C is a platform flash in-system programmable configuration PROM. Available in 1 to 32 Megabit (Mbit) densities, the PROM provides an easy-to-use, cost-effective, and reprogrammable method for storing large Xilinx FPGA configuration bitstreams. The Platform Flash PROM includes both the 3.3V XCFxxS PROM and the 1.8V XCFxxP PROM. The XCFxxS version includes 4-Mbit, 2-Mbit, and 1-Mbit PROMs that support Master Serial and Slave Serial FPGA configuration
modes.
Parametrics
XC2VP30-5FGG676C absolute maximum ratings: (1)VCCINT Internal supply voltage relative to GND: -0.5 to +2.7 V; (2)VCCO I/O supply voltage relative to GND: -0.5 to +4.0 V; (3)VCCJ JTAG I/O supply voltage relative to GND: -0.5 to +4.0 V; (4)VIN Input voltage with respect to GND VCCO ≤ 2.5V: -0.5 to +3.6 V; VCCO ≥ 2.5V: -0.5 to +3.6 V; (5)TSTG Storage temperature (ambient): -65 to +150 ℃; (6)TJ Junction temperature: +125 ℃.
Features
XC2VP30-5FGG676C features: (1)In-System Programmable PROMs for Configuration of Xilinx FPGAs; (2)Low-Power Advanced CMOS NOR FLASH Process; (3)Endurance of 20,000 Program/Erase Cycles; (4)Operation over Full Industrial Temperature Range(-40℃ to +85℃); (5)IEEE Standard 1149.1/1532 Boundary-Scan (JTAG) Support for Programming, Prototyping, and Testing; (6)JTAG Command Initiation of Standard FPGA Configuration; (7)Cascadable for Storing Longer or Multiple Bitstreams.

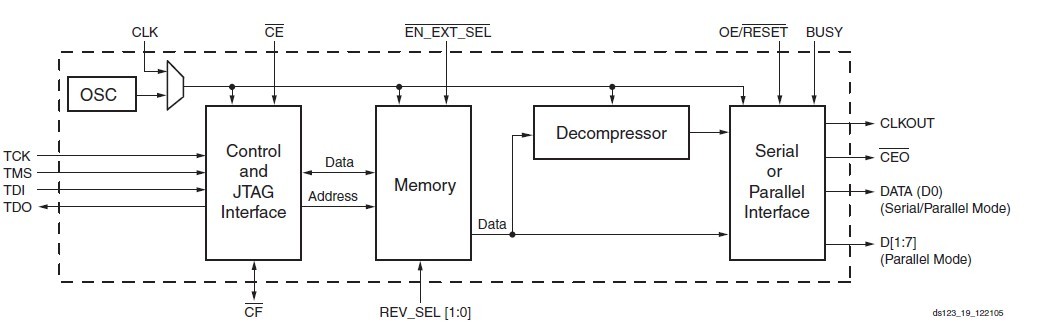

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

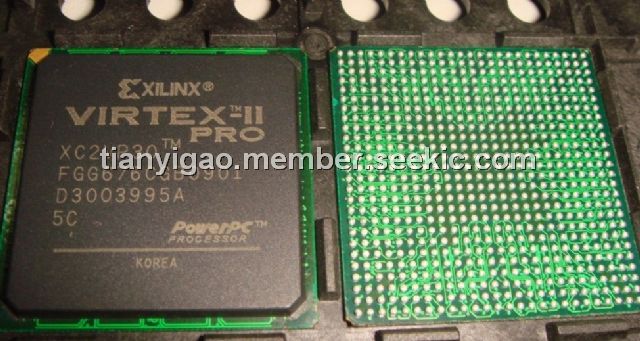

 XC2VP30-5FGG676C |
|
IC VIRTEXIIPRO FPGA 30K 676FCBGA |
Data Sheet |
|
|
||||||
